Fuse/Circuit Breaker ratings are dependent on the type of installation and the size of the loads, refer to chart on page 1.ĭual Sensing Smart Start® SBIs or ‘D’ Series SBIs monitor both the start battery and the auxiliary.When using fuses make sure that the fuse makes a good low resistance connection.Ensure the SBI ground wire is making good contact with the chassis ground point.Ensure the auxiliary battery is properly grounded to a common chassis earth point.Ensure the adequately sized cable is used as per the chart on page 1.Holders along with the required nuts are available fromįK100 100A fuse kit STANDARD WIRING DIAGRAMS REDARC MIDI fuse kits containing 4x fuses and 2x fuse The diagram below shows the construction of a MIDI fuse installation (cables not included). REDARC recommends using MIDI fuses along with a quality fuse holder to match. NOTE: As per above, the LED may stay ON for a period of time after the vehicle is turned OFF. Note: See table on page 1 for speciﬁ c voltage levels. (For a new, fully charged battery, it may take days). Note: The amount of time it takes for the battery voltage to drop low enough for the solenoid to turn off will vary due to battery condition, age and state of charge. The Smart Start® SBI will disconnect the auxiliary battery once the voltage on the start battery drops to the OFF Volts level, you will hear the solenoid click and the LED will go out. Now turn off the vehicle or remove the charger from the start battery. Once the start battery voltage rises to the ‘ON Volts’ level the Smart Start® SBI will activate, you will hear the solenoid click and see the LED illuminate. Start the vehicle or apply a charge to the start battery. Checking the Operation: The Smart Start® SBI should now be operational.After about 10 seconds start the vehicle with the button still held on. To manually operate the Smart Start® SBI, hold the momentary push button switch and the Smart Start® SBI will manually operate until the switch is released. Connect the other terminal of the momentary push button switch to the auxiliary battery supply. Connect a wire from the Blue wire of the Smart Start® SBI to one terminal of a momentary push button switch. Connect a wire from the Blue wire of the Smart Start® SBI to the positive end of an indicator LED (15mA limited current draw) or LED/resistor combination mounted on the dash as speciﬁ ed in the diagram on page 3. Connect the cables in the order shown on the next page (4,5,6,7).

#Redarc smart battery isolator wiring diagram install

Select correct Circuit Breaker/Fuse sizes and install at battery end of both positive cables (3).

Note: A good ground will ensure correct switching voltage. Remove any paint to ensure a good ground connection. Connect the Smart Start® SBI ground terminal to chassis ground.

Make sure the auxiliary battery negative is properly grounded to the vehicle chassis (1).

Mount the Smart Start® SBI securely in a convenient location near the start battery bank.

*D indicates “Dual Sensing” which is described on page 4.ĬABLE SIZE, CIRCUIT BREAKER(CB)/FUSE SIZE AND STUD TORQUE CHART Model Wire Length Start Feature with Pushbutton Override No Override Main Stud Torque CB or Fuse Wire CB or Fuse Wire SBI12/ SBI24 Up to 3m 100 Amps 19mm² (4B&S) 60 Amps 8mm² (8B&S) 5 – 6.2 Nm 3m to 6m 100 Amps 32mm² (2B&S) 60 Amps 13mm² (6B&S) 5 – 6.2 Nm SBI212/ SBI224 Up to 3m 200 Amps 32mm² (2B&S) 120 Amps 19mm² (4B&S) 6.5Nm max 3m to 6m 200 Amps 40mm² (1B&S) 120 Amps 25mm² (3B&S) 6.5Nm max INSTALLATION INSTRUCTIONS Inrush Current 400 Amps 400 Amps 600 Amps 600 Amps Standby Current < 5mA < 5mA < 5mA < 5mA Dimensions 75x70x80mm 90x95x100mm Weight 200g 600g Warranty 2 years Standards CE, C-Tick, AS/NZS CISPR11:2004 Current 100 Amps 100 Amps 200 Amps 200 Amps Max. SPECIFICATIONS Part Number SBI12 (D)* SBI24 (D)* SBI212 (D)* SBI224 (D)* System Voltage 12V 24V 12V 24V ON Volts 13.2V 26.4V 13.2V 26.4V OFF Volts 12.7V 25.4V 12.7V 25.4V Turn ON Delay 5 sec 5 sec 5 sec 5 sec Turn OFF Delay 10 sec 10 sec 10 sec 10 sec Max. Similarly, if the start battery voltage drops too low, the Smart Start® SBI will disconnect any auxiliary batteries or loads from the start battery to conserve charge. Put simply, once the start battery has had some charge from the alternator, the Smart Start® SBI will connect an auxiliary battery to the charge circuit. The Smart Start® SBI is designed speciﬁ cally for use in multi battery applications as a solenoid priority system to protect the start battery from being excessively discharged by auxiliary loads, whilst still allowing the auxiliary battery to supply non essential loads.

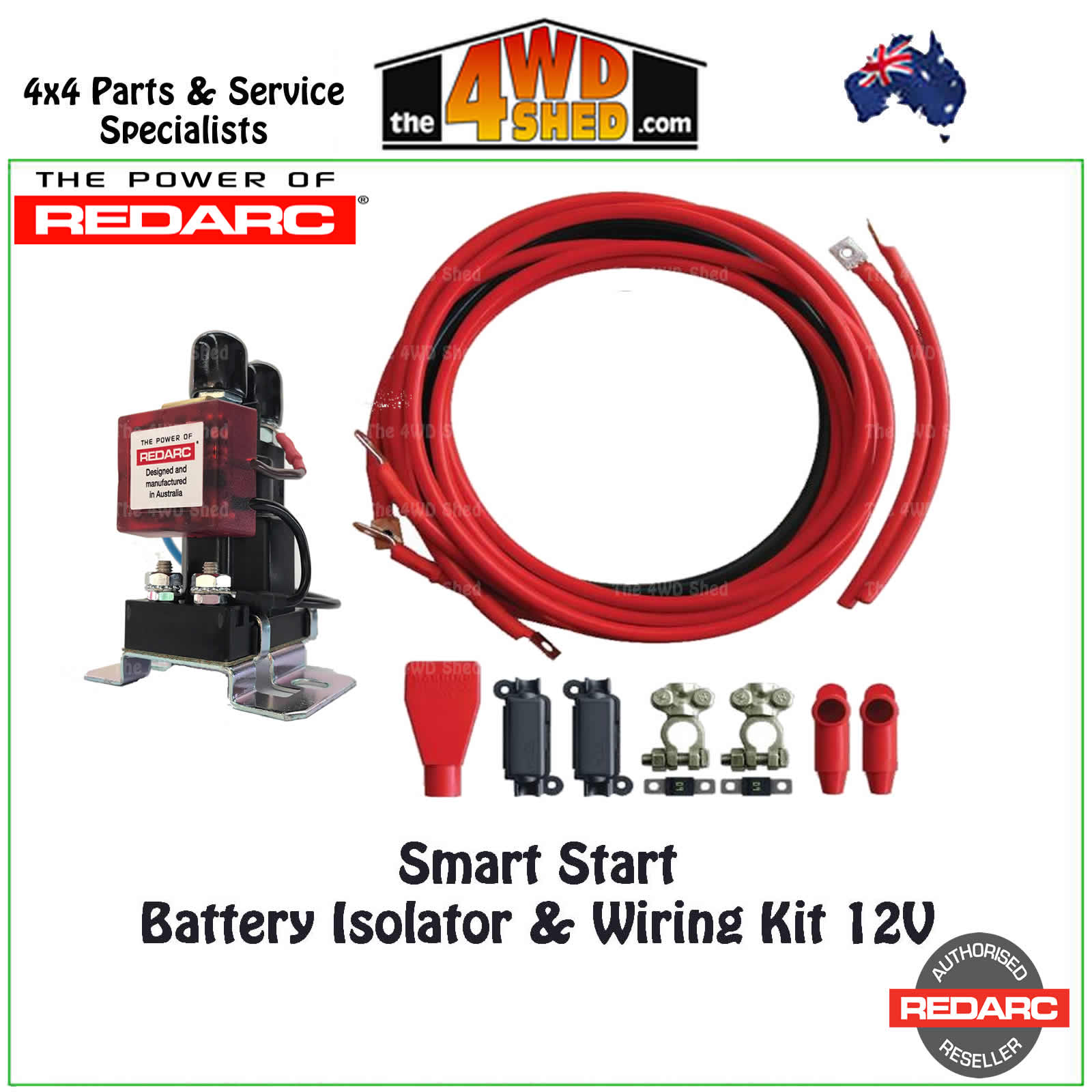

The Smart Start® SBI is a microprocessor-controlled Smart Battery Isolator. 13 Related Posts REDARC SBI12 Smart Start Battery Isolator THE SMART START® SBI
